Detailed introduction:

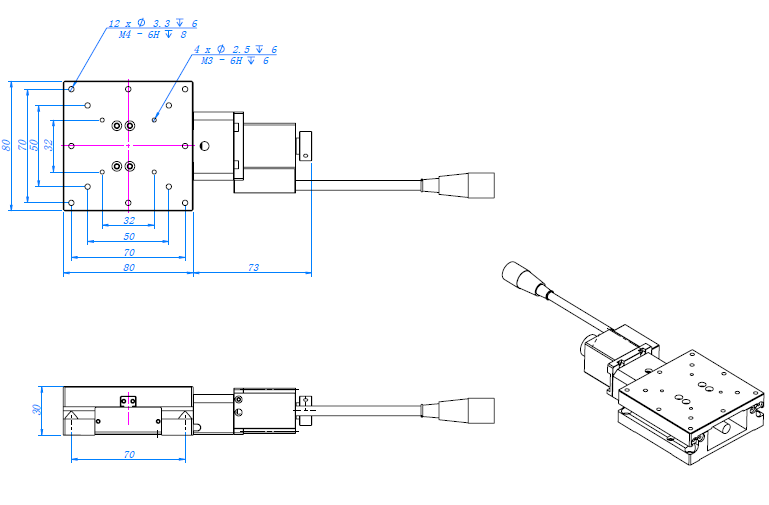

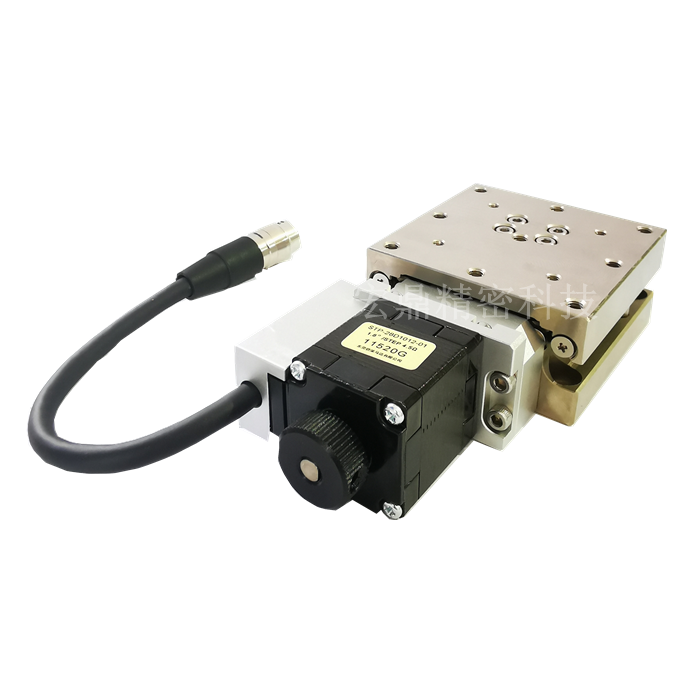

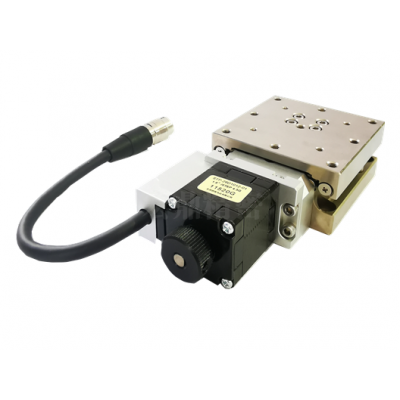

Electric slide HD80-50X-P2/P5
● Ultra-thin, small size, high precision
● The integrated structure design of the electric fine-tuning table avoids the toughness tolerance caused by installing the guide rail
● Add lubrication system to each motion track to improve the service life and accuracy of the alignment platform
● Using SUS440C-electroless nickel plating to effectively prevent deformation and greatly increase service life
● Carry out full inspection with laser interferometer to ensure the accuracy and quality of the slide before delivery
| Product number | HD80-20X-P2/P5 | HD80-50X-P2/P5 | ||||
| Structural specifications | Table size (mm) | 80*80 | ||||
| Moving stroke(mm) | ±10 | ±25 | ||||
| transfer method | Ball screw rod | |||||
| Screw specifications | ∅0801 | |||||
| Rail Type | Integrated V-groove ball | |||||
| Accuracy level | P/N | |||||
| product material | Electrolytic nickel plating on stainless steel | |||||
| Weight | 1.5 | |||||
| Accuracy specifications | ResolutionFull/Half | 2um/1um | ||||
| Maximum speed (full step) | 15mm/s | |||||
| Repeatability | ±0.5um/±1um | |||||
| Load(KG) | 6 | |||||
| Parallelism | 10um | |||||
| Electrical Specifications | motor | category | 2-phase/5-phase | |||
| brand | Eastern/Shinano | |||||
| Step angle° | 1.8/0.72 | |||||
| sensor | Origin sensor | have | ||||
| Limit sensor | have | |||||
| voltage | DC24V | |||||
| Power outlet | Japan Hirose CN-RPI2S-3 | |||||
