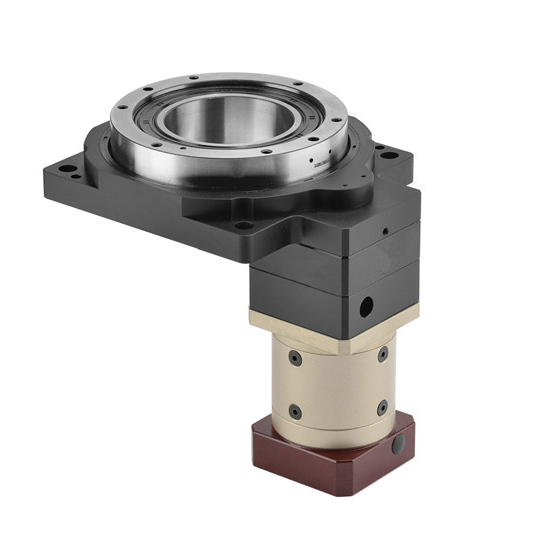

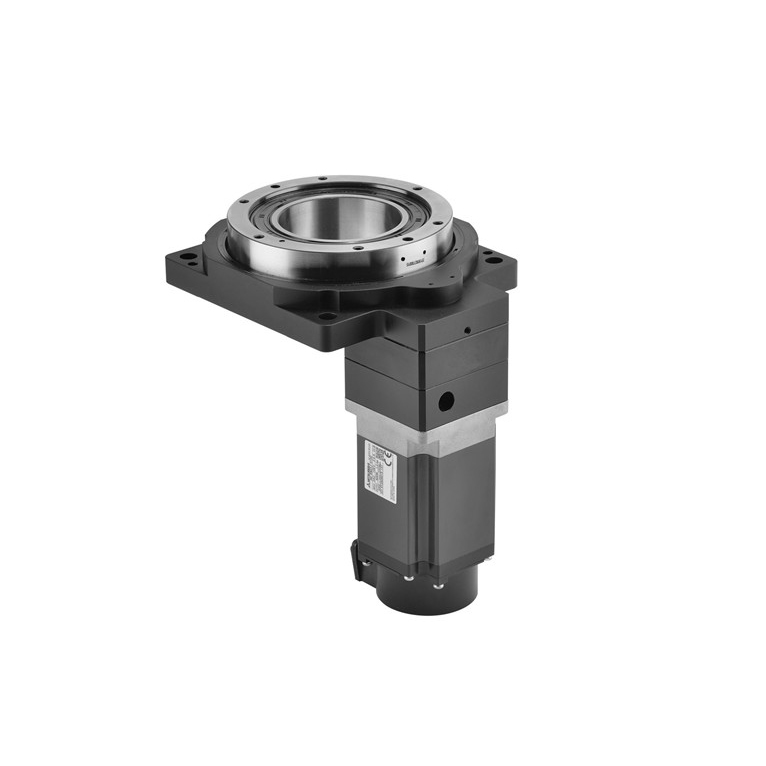

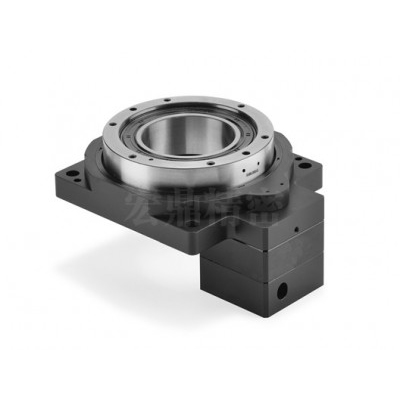

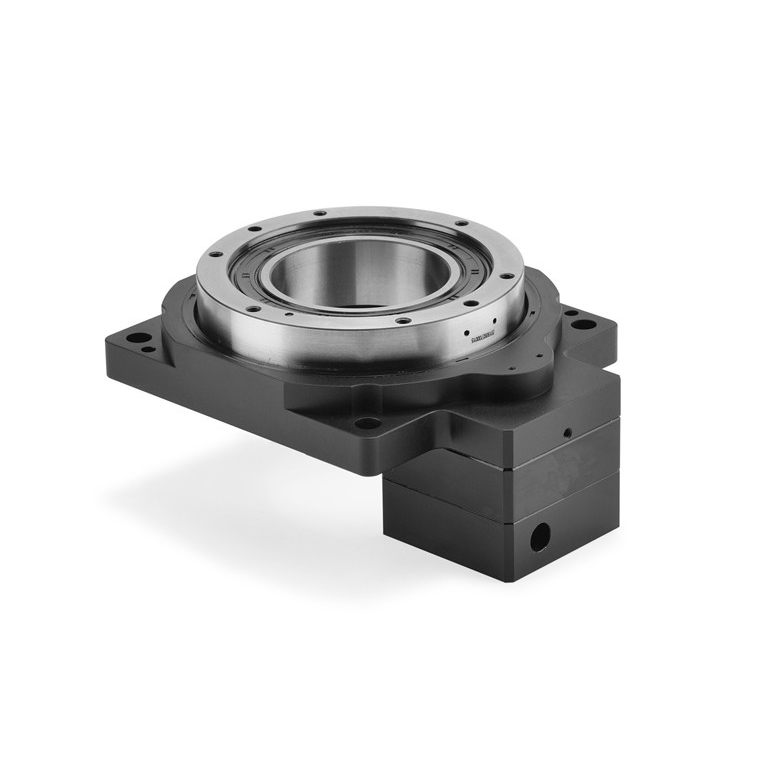

Hollow Rotary Platform HD130-010/018
● Small size, high precision
● The hollow rotating platform is used for large-angle rotating stations and is installed with servo motors
● Hollow structure design, convenient for customers to apply structural space
● Add lubricating grease to the bearings to increase the life and accuracy of the rotary alignment platform
| Product Parameters | |
| Bearing type | Crossed roller bearings |
| Permissible torque | 32N.m |
| Allowable speed | 250rpm |
| Reduction ratio | 10:1 18:1 |
| Moment of inertia | 81556* 10 -7 KG.㎡ |
| Allowable axial load | 2000N |
| Allowable inertia moment load | 50 Nm |
| positioning accuracy | ≤3min |
| Repeatability | ±sec(0.001°) |
| Rotating platform parallelism | ±0.005MM |
| Concentricity of rotating platform | ±0.01MM |
| Protection level | IP40 |
| Precision life | 20000H |
| weight | 2.5KG |

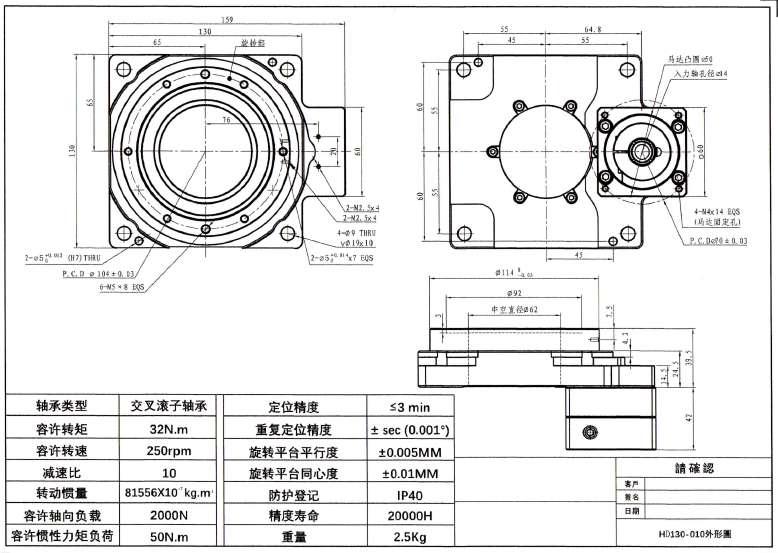

Assembly diagram:
