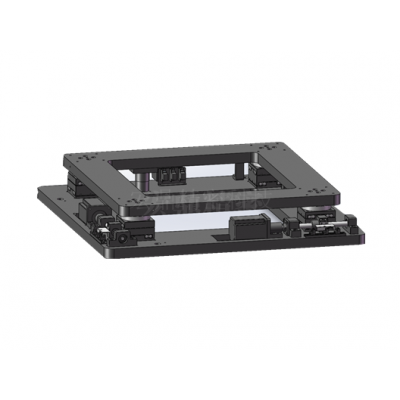

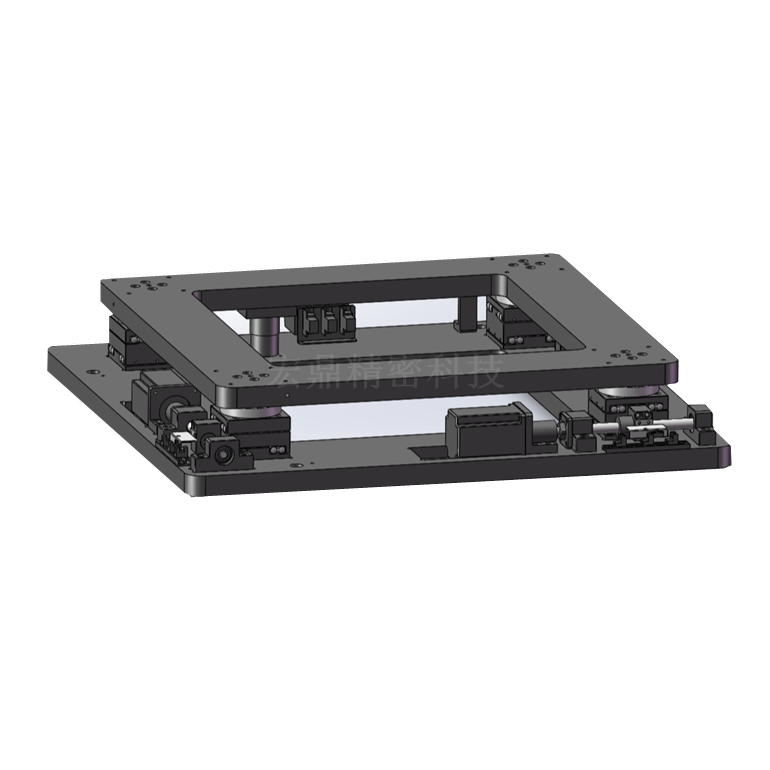

Precision alignment platform XXY-600
● Ultra-thin, small size, high precision
● The hollow structure design of UVW alignment platform is convenient for customers to apply structural space
. ● Lubrication system is added to each motion track to improve the service life and accuracy of the alignment platform
. ● Hard oxidation treatment on the surface of the material can effectively prevent deformation and greatly increase the service life.
● Laser interferometer full inspection is implemented to ensure the accuracy and quality of the slide table before delivery.

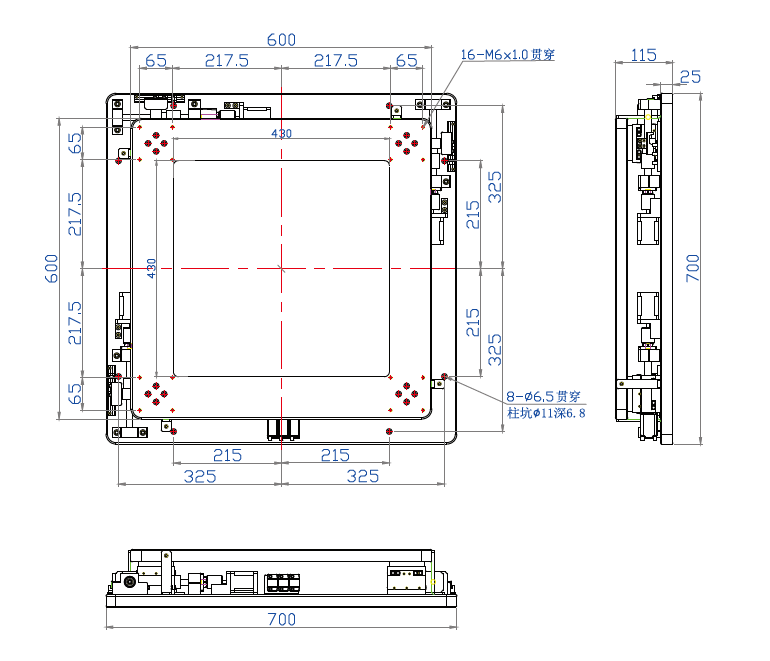

| Product size specifications | |
| Product size (mm) | Upper table 600*600 |
| Lower table 700*700 | |
| Height 115 | |
| Platform Level (UP) | P-level/U-level |
| Repeat positioning accuracy (mm) | ±0.003/ ±0.0015 |
| Stroke (mm) | ±8 |
| Rotation angle ( ° ) | ±3° |
| Screw diameter (mm) | ∅12 |
| Screw lead (mm) | 5 |
| Linear guides | VR3 |
| Flatness (mm) | ±0.03 |
| Horizontal load (KG) | 60 |
| Body material | Aluminum Alloy |
| Surface treatment | Cathodic Bright Black |
| Body weight (KG) | 45±2% |
| Motor Type | Two-phase stepper motor 57/86 frame |
| Drive Type | Two-phase stepper driver |
| Sensor Type | Panasonic/NPN |
