Detailed introduction:

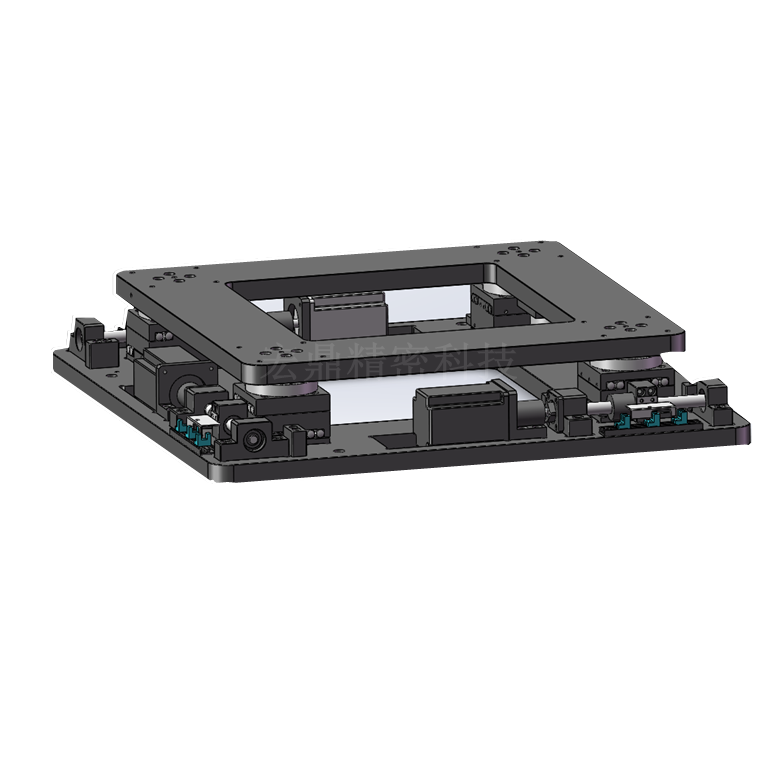

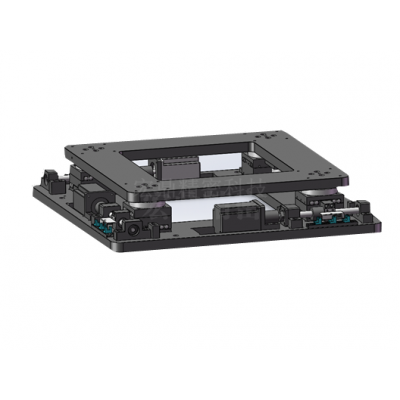

Alignment platform XXY-450
● Ultra-thin, small size, high precision
● UVW platform is a precision product, and should be protected from impact during application
● Hollow structure design, convenient for customers to apply structural space
● Lubrication system is added to each motion track to improve the service life and accuracy of the automatic alignment platform
● Hard oxidation treatment on the surface of the material effectively prevents deformation and greatly improves the service life
● Laser interferometer full inspection is implemented to ensure the accuracy and quality of the slide table before delivery

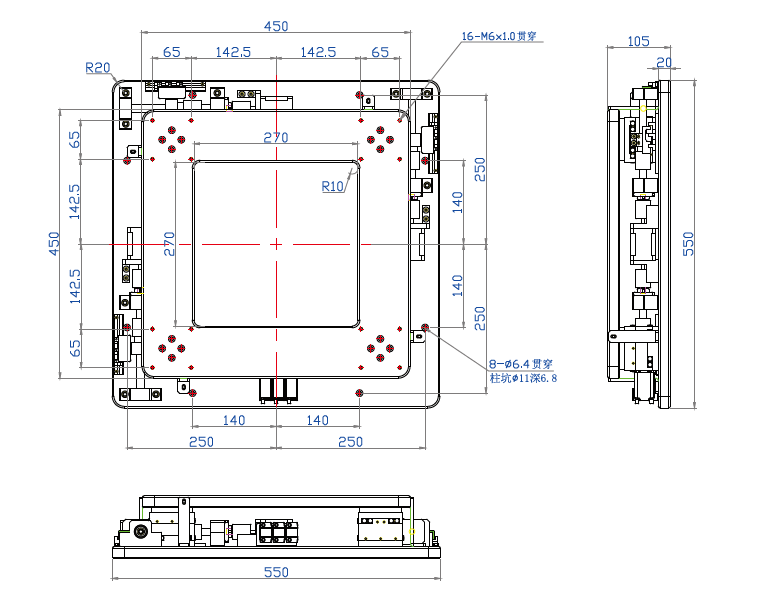

| Product size specifications | |
| Product size (mm) | Upper table 450*450 |
| Lower table 550*550 | |
| Height 105 | |
| Platform Level (UP) | P-level/U-level |
| Repeat positioning accuracy (mm) | ±0.003/ ±0.0015 |
| Stroke (mm) | ±8 |
| Rotation angle ( ° ) | ±3° |
| Screw diameter (mm) | ∅12 |
| Screw lead (mm) | 5 |
| Linear Guides | VR3 |
| Flatness (mm) | ±0.025 |
| Horizontal load (KG) | 50 |
| Body material | Aluminum Alloy |
| Surface treatment | Cathodic Bright Black |
| Body weight (KG) | 25±2% |
| Motor Type | Two-phase stepper motor 42/57 frame |
| Drive Type | Two-phase stepper driver |
| Sensor Type | Panasonic/NPN |
