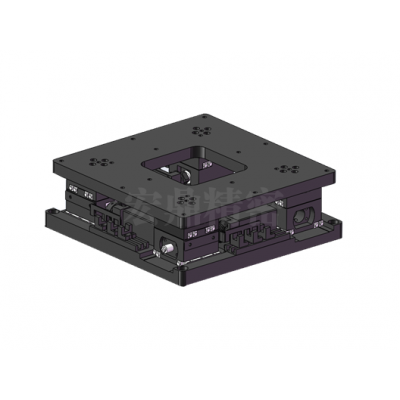

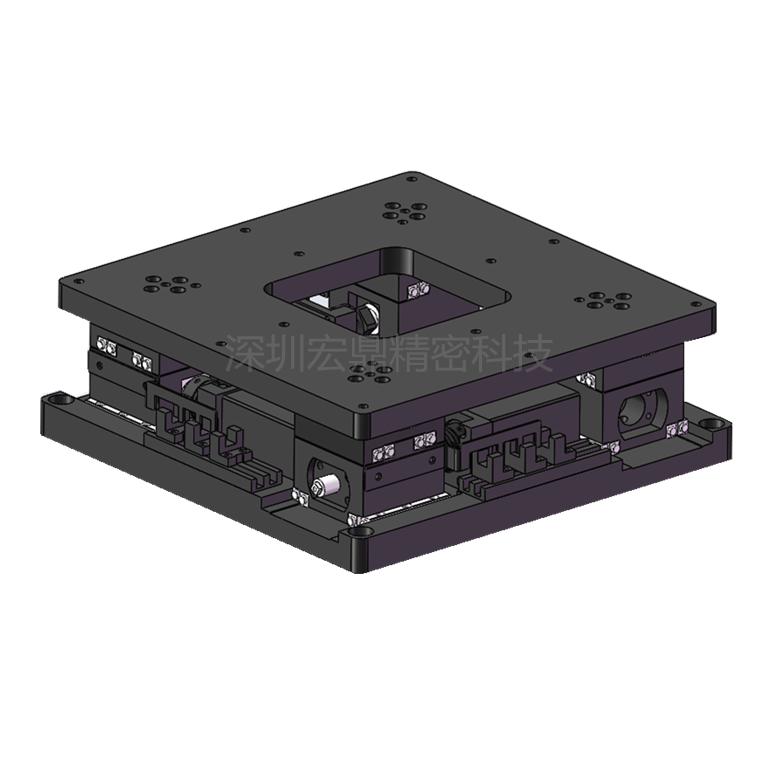

Precision alignment platform XXY-200D
● Ultra-thin, small size, high precision
● Automatic alignment platform is used in lithium battery equipment, UV printing, etc.
● Hollow structure design, convenient for customers to apply structural space
● Add lubrication system to each moving track to improve the service life and accuracy of UVW alignment platform
● Hard oxidation treatment on the surface of the material can effectively prevent deformation and greatly increase the service life
● Implement full inspection with laser interferometer to ensure the accuracy and quality of the slide table before delivery
| Product size specifications | |
| Product size (mm) | Upper table 200*200 |
| Lower table 210*210 | |
| Height 70 | |
| Platform Level (UP) | P-level/U-level |
| Repeat positioning accuracy (mm) | ±0.003/ ±0.0015 |
| Stroke (mm) | ±5 |
| Rotation angle ( ° ) | ±3° |
| Screw diameter (mm) | ∅8 |
| Screw lead (mm) | 2 |
| Linear Guides | VR2 |
| Flatness (mm) | ±0.02 |
| Horizontal load (KG) | 35 |
| Body material | Aluminum Alloy |
| Surface treatment | Cathodic Bright Black |
| Body weight (KG) | 7±2% |
| Motor Type | Two-phase stepper motor 28 frame |
| Drive Type | Two-phase stepper driver |
| Sensor Type | Panasonic/NPN |

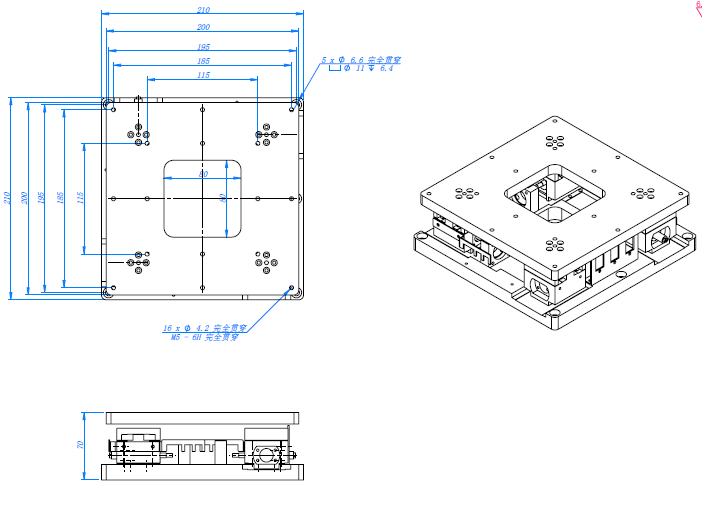

![5@]C%Q7[4GK8R[T%K1]YIZV.png](https://www.gokuke.com/file/upload/202407/19/1003389215.png "1602559810748110.png")
