Detailed introduction:

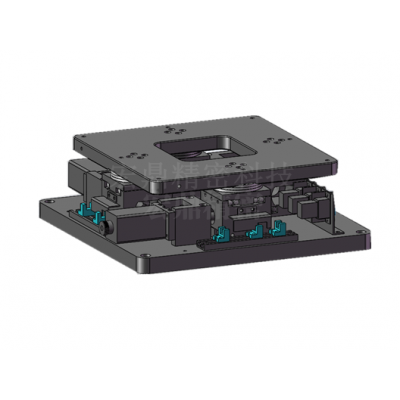

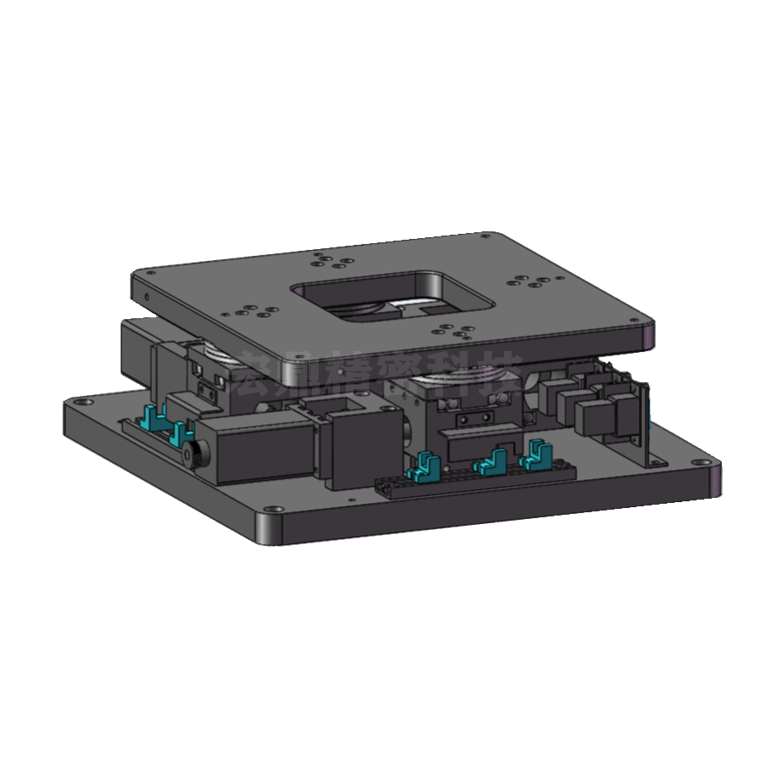

Visual alignment platform XXY-200
● Ultra-thin, small size, high precision
● Hollow structure design, convenient for customers to apply structural space
● UVW alignment platform is also called XXY alignment platform
● Add lubrication system to each moving track to improve the service life and accuracy of the correction and alignment platform
. ● Hard oxidation treatment on the surface of the material effectively prevents deformation and greatly improves the service life.
● Implement full inspection with laser interferometer to ensure the accuracy and quality of the slide before delivery.

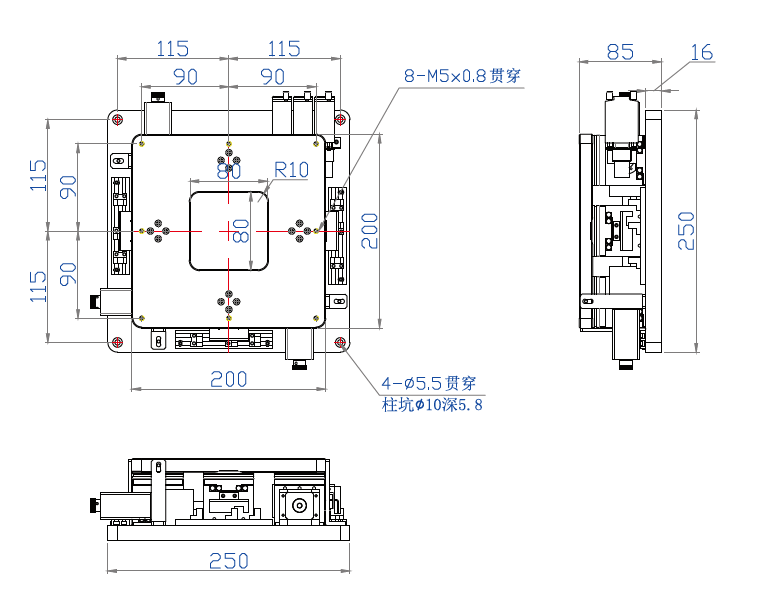

| Product size specifications | |
| Product size (mm) | Upper table 200*200 |
| Lower table 250*250 | |
| Height 85 | |
| Platform Level (UP) | P-level/U-level |
| Repeat positioning accuracy (mm) | ±0.003/ ±0.0015 |
| Stroke (mm) | ±5 |
| Rotation angle ( ° ) | ±3° |
| Screw diameter (mm) | ∅8 |
| Screw lead (mm) | 2 |
| Linear Guides | VR2 |
| Flatness (mm) | ±0.02 |
| Horizontal load (KG) | 40 |
| Body material | Aluminum Alloy |
| Surface treatment | Cathodic Bright Black |
| Body weight (KG) | 6±2% |
| Motor Type | Two-phase stepper motor 42 frame |
| Drive Type | Two-phase stepper driver |
| Sensor Type | Panasonic/NPN |
