Detailed introduction:

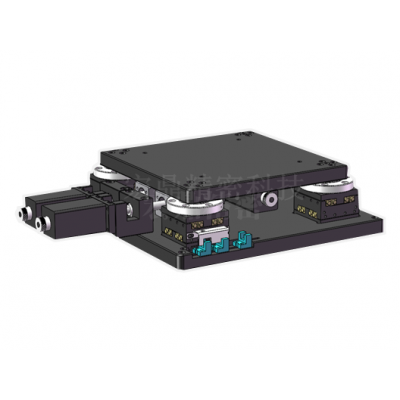

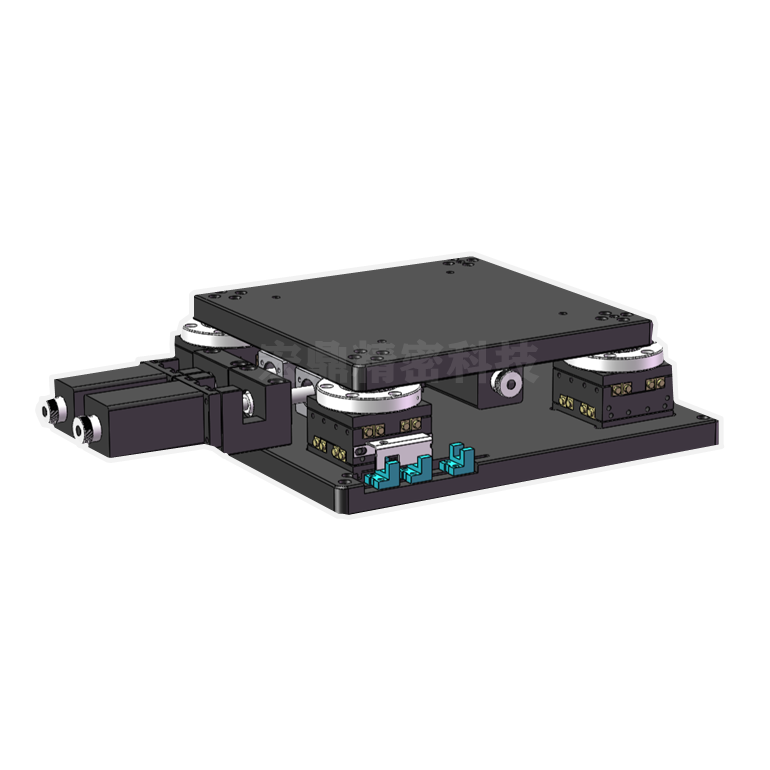

Automatic alignment platform XXY-180
● Ultra-thin, small size, high precision
● Hollow structure design, convenient for customers to apply structural space
● UVW alignment platform is used in screen printing equipment, laminating machines, etc.
● Add lubrication system to each moving track to improve the service life and accuracy of the alignment platform
● Hard oxidation treatment on the material surface effectively prevents deformation and greatly improves the service life
● Implement full inspection with laser interferometer to ensure the accuracy and quality of the slide before delivery

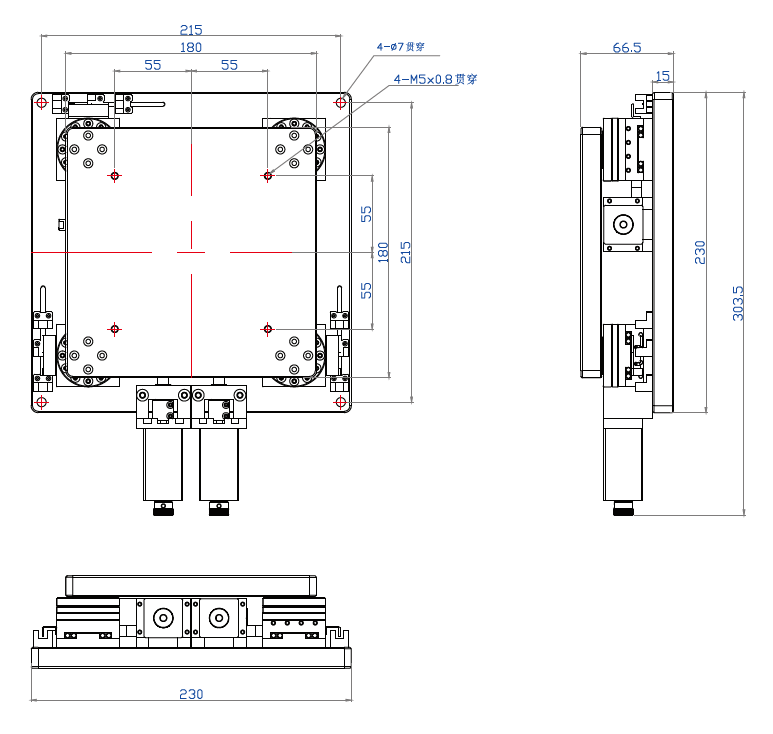

| Product size specifications | |
| Product size (mm) | Upper table 180*180 |
| Lower table 230*230 | |
| Height 66.5 | |
| Platform Level (UP) | P-level / U-level |
| Repeat positioning accuracy (mm) | ±0.003 / ±0.0015 |
| Stroke (mm) | ±5 |
| Rotation angle (°) | ±3° |
| Screw diameter (mm) | ∅8 |
| Screw lead (mm) | 2 |
| Linear guides | VR2 |
| Flatness (mm) | ±0.02 |
| Horizontal load (KG) | 35 |
| Body material | Aluminum Alloy |
| Surface treatment | Cathodic Bright Black |
| Body weight (KG) | 5.5±2% |
| Motor Type | Two-phase stepper motor 28 frame |
| Drive Type | Two-phase stepper driver |
| Sensor Type | Panasonic/NPN |
