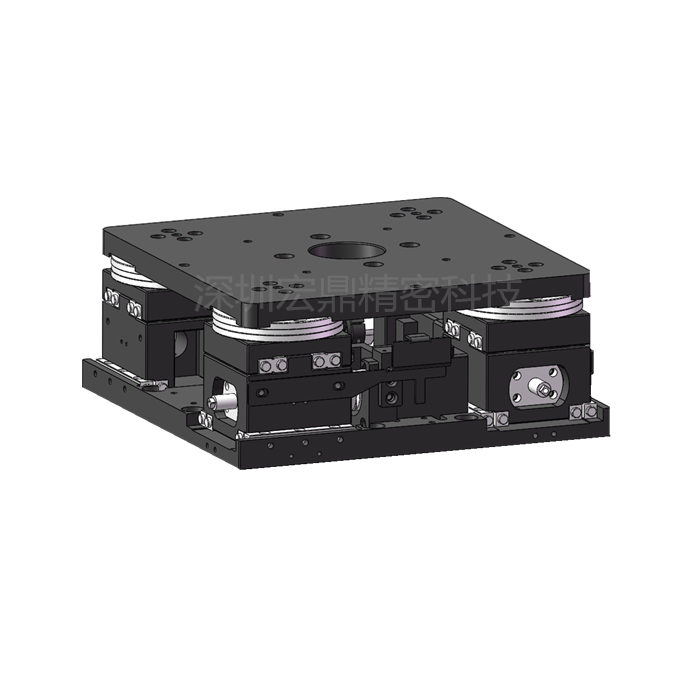

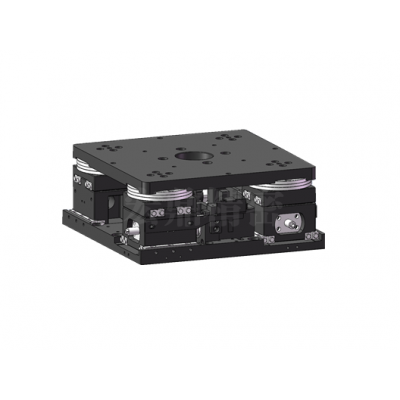

Visual alignment platform XXY-160
● Ultra-thin, small size, high precision
● Hollow structure design, convenient for customers to apply structural space
● XXY alignment platform is used for visual alignment and product overlap function
● Add lubrication system to each moving track to improve the life and accuracy of the automatic alignment platform
● Hard oxidation treatment on the surface of the material effectively prevents deformation and greatly improves the service life
● Implement full inspection with laser interferometer to ensure the accuracy and quality of the slide before delivery

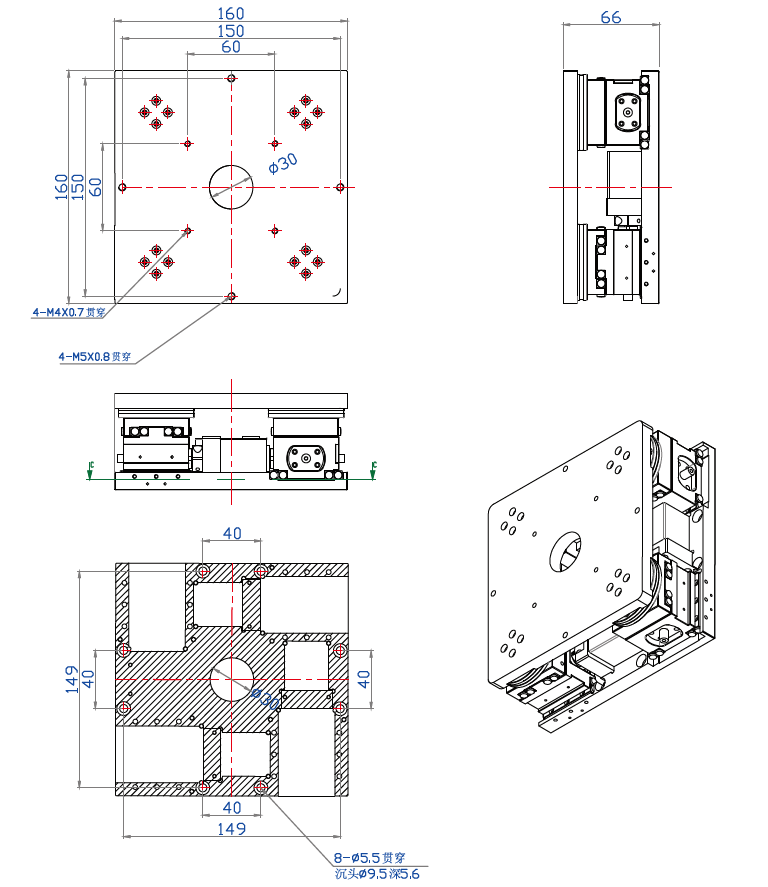

| Product size specifications | |
| Product size (mm) | Upper table 160*160 |
| Lower table 170*170 | |
| Height 66 | |
| Platform Level (UP) | P-level/U -level |
| Repeat positioning accuracy (mm) | ±0.003/ ±0.0015 |
| Stroke (mm) | ±5 |
| Rotation angle ( ° ) | ±3° |
| Screw diameter (mm) | ∅6 |
| Screw lead (mm) | 1 |
| Linear guides | VR2 |
| Flatness (mm) | ±0.02 |
| Horizontal load (KG) | 32 |
| Body material | Aluminum Alloy |
| Surface treatment | Cathodic Bright Black |
| Body weight (KG) | 5±2% |
| Motor Type | Two-phase stepper motor 28 frame |
| Drive Type | Two-phase stepper driver |
| Sensor Type | Panasonic/NPN |
