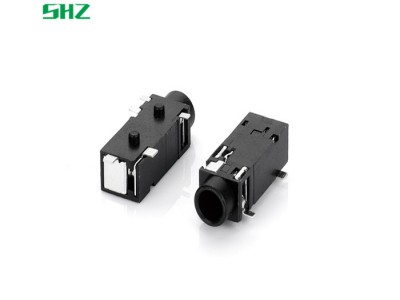

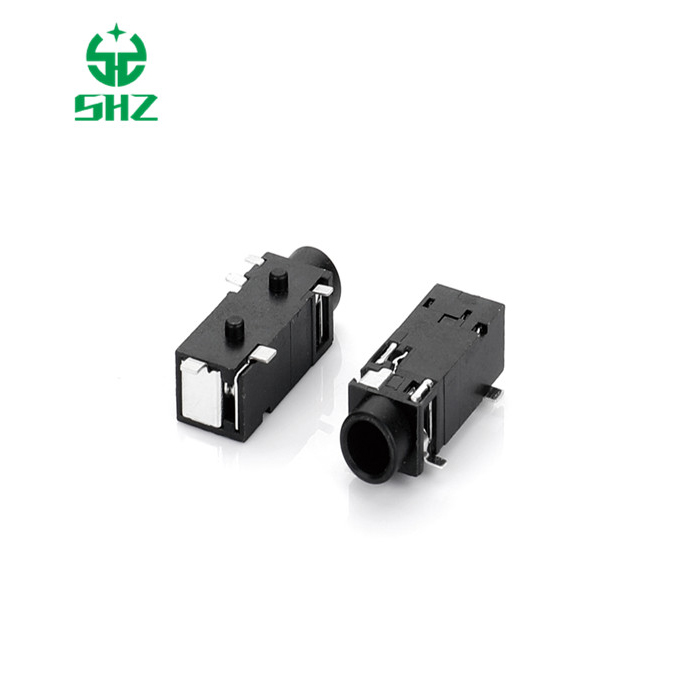

Headphone jack SMD jack 3.5MM



Unit Price NegotaibleCompare
Inquiry Not available
Browse 18
Aarea Made in China
Expired Long-term validity
Update 2024-08-16 15:22

Detailed Explanation

Headphone jacks are a common electronic component used in cell phone stereo designs, CD players, cordless phones, etc., and it usually has a patch type jack. The SMD jack is a miniaturized design that saves space and improves the portability of the device.


Chip jacks are usually a 6-pin, 4-stage design with a compact size that is compatible with a wide range of audio devices. Jacks of this design usually feature gold-plated copper-sleeved harpoon feet to ensure a stable connection and provide superior audio transmission performance.


In the manufacturing process of headphone jacks, the chip jack manufacturing process usually includes the following steps:

1. Design: According to the customer's requirements, design the size, shape and material of the chip jack, etc.


2. Manufacture: According to the design drawings, use high-precision manufacturing equipment to manufacture the components of the chip jack.


3. Mounting: Mount the manufactured chip jack components onto the surface of the headphone socket to ensure good contact with other components.


4. Testing: Test the chip jack to make sure it meets the design requirements and quality standards.


5. Packaging: Package the chip jack to ensure its safety and stability during transportation and use.


The manufacturing process of chip jack requires high precision manufacturing equipment and professional technicians to ensure its quality and performance.
